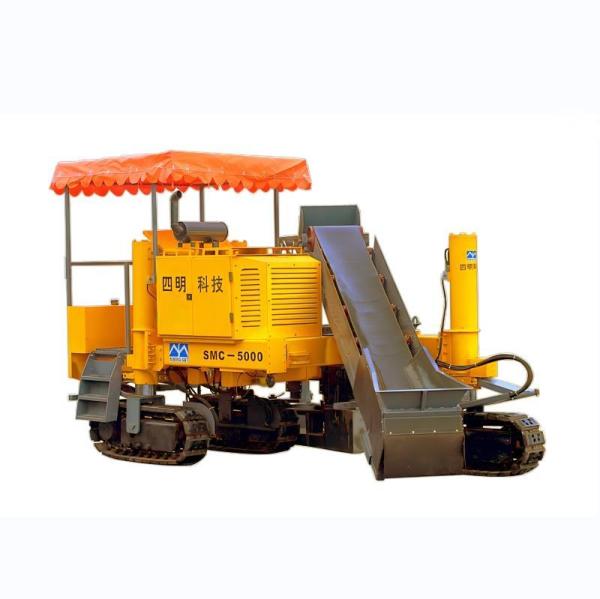

SMC-5000 Slipform Paver with Short Turning Radius 0-2500mm Paving Width

Name: SMC5000 Slipform Paver with Short Turning Radius 02500mm Paving Width
Brand: Siming
Price: 120 USD

Buy cheap SMC-5000 Slipform Paver with Short Turning Radius 0-2500mm Paving Width product

Place of Origin : Jiangsu, China

Brand Name : Siming

MOQ : 1

Price : $120,000

Weight : 9000 kg

Paving height : 0-1300mm

Paving width : 0-2500mm (side placement), 0-3000mm (mid placement)

Driving Speed : 0-35 m/min

Paving Speed : 0-10.5m/min

Flatness : ±3 mm/3m

Vibrator brand : WYCO

Vibrator interface : 5/6

Vibrator frequency : 0-167 Hz

Fuel tank : 115L

Water tank : 290L (standard) + 420L (optional)

Engine : Weichai WP4.1G100E

Rate power : 73.5Kw/2300rpm

Emission standard : Phase Ⅲ

Transport size : 5400*2150*2700 mm

Contact Now

Application range

1. Highway and municipal road construction fields: curbs, median strips, anti-collision walls, slope protection, drainage
ditches, cement pavements, etc.
2. Railway construction field: retaining walls, drainage ditches, etc.
3. Agriculture and water conservancy construction fields: anti-seepage canals, slope protection and road hardening, etc.

Paving width	0-2500 mm(side placement) 0-3000 mm(mid placement)
Paving height	0-1300mm
Flatness	±3 mm/3m
Paving Speed	0-10.5m/min
Driving speed	0-35 m/min
Vibrator brand	WYCO
Vibrator interface	5/6
Vibrator frequency	0-167 Hz
Frul tank	115L
Water tank	290L(standard)+420L(optional)
Engine	Weichai WP4.1G100E
Rate power	73.5Kw/2300rpm
Emission standard	Phase Ⅲ
Feed system	Spiral/belt
Weight	9 t
Transport size(LWH)	540021502700 mm

SMC-5000 Slipform Paver with Short Turning Radius 0-2500mm Paving Width

Features:
1. Get in place quickly
The position of the mold can be adjusted left and right through the hydraulic cylinder, which greatly shortens the time before
construction. The slipform machine can be used for paving under various working conditions.
2. The conveying position can be adjusted
The screw feeding device adjusts the tilt angle and the front and rear positions through the hydraulic cylinder to meet various
feeding conditions. During construction, the discharge port is located directly above the mold hopper, and the rotation angle of
the slipform machine can be manually adjusted during transfer and transportation to narrow the body.

3. Track offset function
The right rear track has a hydraulic offset function, which can adjust the track spacing, which is convenient for transportation
and increases the paving width in the middle mode.
4. One machine with multiple functions
Mold Offset: For curbs, gutters, crash walls, etc.
Mold in the middle (optional): used for low-grade rural roads, squares, sidewalks and agricultural irrigation canals with concrete
structures.
5. One machine with multiple modes
According to different construction requirements, a variety of molds can be selected for users under reasonable design parameters.
Improve paver utilization.

6. Full hydraulic drive

Imported brand load-sensitive variable pumps save energy and reduce the temperature rise of the hydraulic system. Hydraulic valves
and other imported brands are selected, with superior and reliable performance. Vibrator adopts imported brand with excellent
performance.

7. Milling function (optional, non-standard)

The leveler directly driven by the hydraulic motor has a compact structure and strong power, which can mill the hard roadbed, make
the mold side plate at the back more consistent with the roadbed, and reduce paving material leakage.

1.Q: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted

2.Q: What certificates are available in Machinery?
A: For the certificate, we have ISO certificate,

3.Q: What about the delivery time?
A: 7-30 days after receiving the deposit.

4.Q: What about the warranty time?
A:: 12 months after shipment .

5. Q: What about the Minimum Order Quantity?
A:: The MOQ is 1 pcs
